Hybrid Weigh in Motion

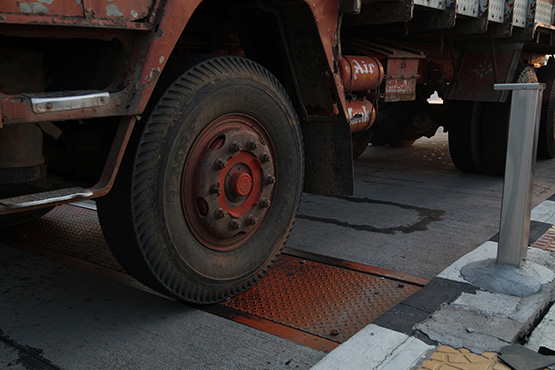

Hybrid Weigh-in-Motion or Hybrid WIM system can accurately weigh vehicles at speeds upto 25 km/h. These systems are accurate, robust for high volumes. Hybrid Weigh-in-Motion (WIM) solutions are cost effective means of measuring truck axle and gross weights without affecting the flow of traffic. These scales are routinely used in commercial weight enforcement to enforce trucks entering a weight station/ toll gate.
Weigh in Motion
Weigh-in-motion or weighing-in-motion (WIM) devices are designed to capture and record the axle weights and gross vehicle weights as vehicles drive over a measurement site. This makes the weighing process more efficient, and, in the case of commercial vehicles, allows for trucks under the weight limit to bypass static scales or inspection.
Slow Speed Weigh in Motion
Slow Speed Weigh-in-Motion or Slow Speed WIM (SSWIM) system can accurately weigh vehicles at speeds between 0 to 15 km/h. It is non intrusive, automated weigh data collection system before classification of Vehicle at the Toll Plaza. Slow Speed Weigh-in-Motion (WIM) arguments weighing stations equipped with four Super Beam type Load Cells, permanently installed into a concrete lane.
Technical Specifications:
| Product | Hybrid Weigh-in-Motion System |
| Type | Low Profile Modular Hybrid Type WIM |
| Capacity | 20/30 T |
| Size | 0.7m x 3m |
| Structure | Retrofit Modular Design, Relocatable |
| Structure Material Standards | MS in accordance to the BIS 2062 specifications |
| Structure Design Standards | STADD Pro III Tested for 150% safe overloading |
| Structure Safe Overload | 150% of the GVW Gross Weight |
| Load Cells | Stainless Steel Fully Welded Type IP68, OIML, NTEP |
| Type and Capacity | Super Beam type 10T - 6 nos. Load Cells |
| Ultimate Overload Rating | 300% |
| Mounting Assembly | Mild Steel Plated |
| Lightning Protection Surge Voltage | Built In |
| Indicator | PLC Microcontroller Based LED Display with Weather Protection |
| Junction Box | In accordance to IP65 (for A2D conversion) |
| Connectivity | Via USB/Ethernet / RS 232-RS 485 |
| Standard Approvals | Govt of India |
| Accuracy | Static Mode - 0.5%, Dynamic Mode + 3% with speed up to 25 Km/h |
| Software | Date, Time, Lane ID, Vehicle Count, Axle Weight, GVW, Class of Vehicle, Overloaded Vehicles |
| Vehicle Differentiator | Vehicle data entry display at WIM Controller |
| Loop Detector | Auxiliary equipment for vehicle separation. |
